Manufacturer: Brocade Communications Systems, Inc
Manufacturer Part Number: ICX7250-48P
Manufacturer Website Address: http://www.brocade.com
Brand Name: Brocade
Product Series: ICX 7250
Product Model: ICX 7250-48P

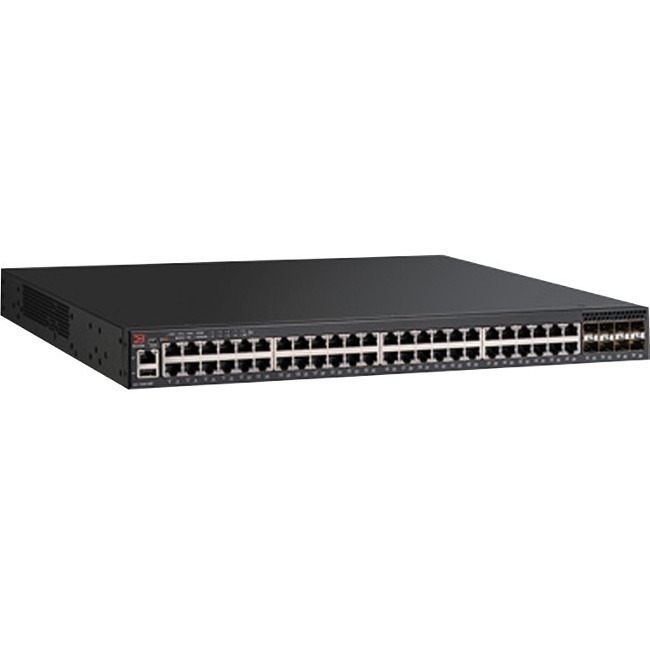

Product Name: ICX 7250 Switch
Marketing Information:
Entry-Level, Enterprise-Class Stackable Switch with Future-Proof Expandability
The Brocade® ICX® 7250 Switch delivers the performance, flexibility, and scalability required for enterprise Gigabit Ethernet (GbE) access deployment. It raises the bar with up to 8×10 GbE ports for uplinks or stacking and market-leading stacking density with up to 12 switches (576×1 GbE) per stack. In addition, the Brocade ICX 7250 combines enterprise-class features, manageability, performance, and reliability with the flexibility, cost-effectiveness, and “pay as you grow” scalability of a stackable solution.
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 8 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-TX
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 8
Expansion Slot Type: SFP+
Number of SFP+ Slots: 8
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 14.6″
Weight (Approximate): 12.92 lb
Miscellaneous
Package Contents:
- ICX 7250 Switch
- Power Cord
- 2 x Post Rack Mounting Brackets
- USB Serial Console Cable
Environmentally Friendly: Yes
Environmental Certification:
- RoHS-6
- WEEE
Warranty
Limited Warranty: Lifetime
