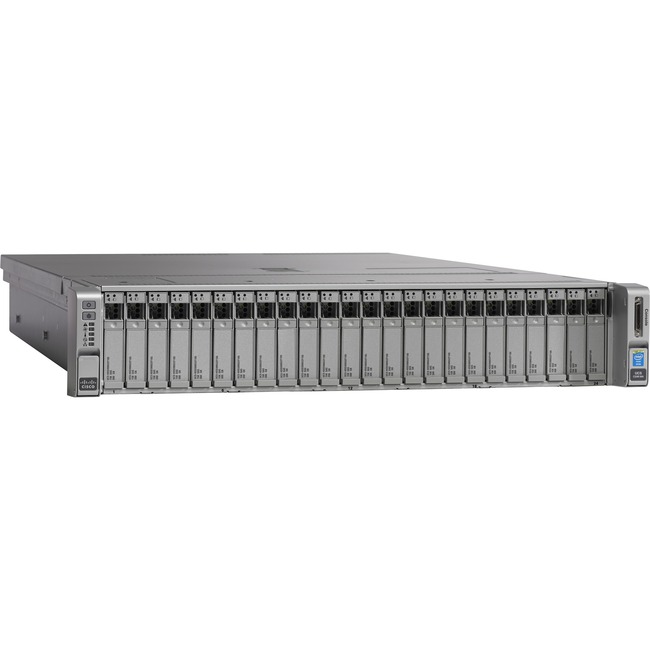

Cisco Barebone System – 2U Rack-mountable – 2 x Processor Support

General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSC-C240-M4SX
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: C240 M4
Product Name: UCS C240 M4 Barebone System
Marketing Information: The Cisco UCS® C240 M4 Rack Server is our newest 2-socket, 2-rack-unit (2RU) rack server (Figure 1.) It offers outstanding performance and expandability for a wide range of storage and I/O-intensive infrastructure workloads, from big data to collaboration. The enterprise-class Cisco UCS C240 M4 server extends the capabilities of the Cisco Unified Computing System™ (Cisco UCS) portfolio in a 2RU form factor with the addition of the Intel® Xeon® processor E5-2600 v3 product family, which delivers a superb combination of performance, flexibility, and efficiency.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C610
Memory
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000
Number of Total Memory Slots: 24
Controllers
Controller Type:

• 12Gb/s SAS
• Serial ATA

RAID Supported: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 24
Number of Internal 2.5″ Bays: 24
Interfaces/Ports
Total Number of USB Ports: 3
Number of USB 3.0 Ports: 2
Operating System
Operating System Supported:

• Windows Server 2012 R2
• Windows Server 2012
• Windows Server 2008 R2
• Red Hat Enterprise Linux
• SuSE Linux Enterprise Server
• Oracle Linux
• Solaris
• Ubuntu Server
• CentOS

Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 2U
