Cisco Barebone System – Blade – 2 x Processor Support

MFR#

UCSB-B200-M5-U

In stock

Product Type: Barebone System
Product Family: B200 M5
Brand Name: Cisco
Form Factor: Blade
Ethernet Technology: Ethernet
Request Pricing
?

B2B Pricing

Shop with confidence knowing that you have a dedicated B2B account team ready to answer any technical or sales questions.

  • Exclusive business pricing
  • Custom quotes
  • Responsive technical support
  • Pre-sales and after-sales support
Add to quote cart

Ask a Product Specialist

Looking for something else or have a question about this product?
Overview
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCSB-B200-M5-U
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: B200 M5

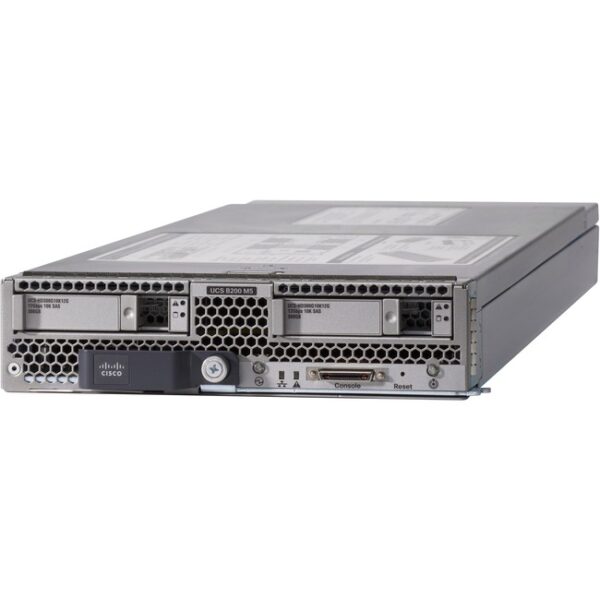

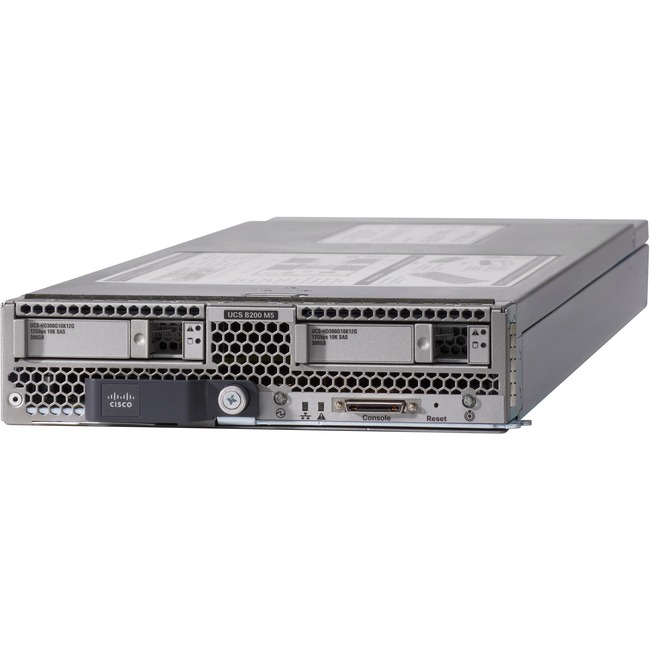

Product Name: UCS B200 M5 Barebone System
Marketing Information: Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.

The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco’s Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
Product Type: Barebone System
Processor
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset
Chipset Manufacturer: Intel
Chipset Model: C620
Memory
Maximum Memory Supported: 3 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Number of Total Memory Slots: 24
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
Network & Communication
Ethernet Technology: Ethernet
I/O Expansions
Number of Total Expansion Bays: 2
Number of Internal 2.5″ Bays: 2
Interfaces/Ports
Total Number of USB Ports: 1
Number of USB 3.0 Ports: 1
Physical Characteristics
Form Factor: Blade
Height: 2″
Width: 8″
Depth: 24.4″
Weight (Approximate): 9.50 lb

Specifications
Weight 9.50 kg
Dimensions 8 × 2 cm
Product Type

Barebone System

Product Family

B200 M5

Brand Name

Cisco

Form Factor

Blade

Ethernet Technology

Ethernet

Memory Technology

DDR4 SDRAM

Number of Total Memory Slots

24

Controller Type

12Gb/s SAS

Maximum Memory Supported

3 TB

Memory Standard

DDR4-2666/PC4-21300

Graphics Controller Model

G200e

Total Number of USB Ports

1

Processor Supported

Xeon

Number of USB 3.0 Ports

1

Graphics Memory Capacity

8 MB
