Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: IR829B-LTE-EA-BK9
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Model: IR829

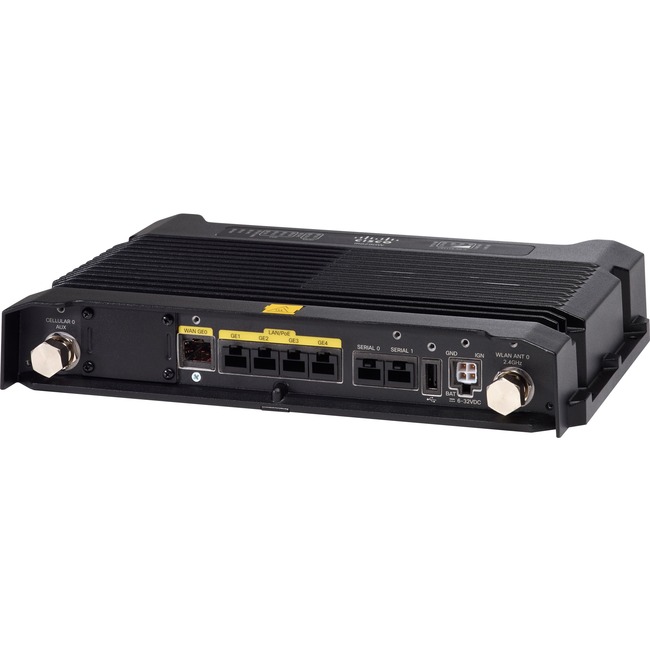

Product Name: IR829 Modem/Wireless Router
Marketing Information: The IR829 Industrial Integrated Services Routers (IR829) have a compact form factor, multimode 4G LTE and 3G wireless WAN (dual active LTE and single LTE models), IEEE 802.11a/b/g/n WLAN, Ethernet (RJ45 and SFP), serial connections, integrated storage and compute capability for edge application hosting, and integrated 9-32 VDC power input. The IR829 also extends the connectivity to include Low Power Wide-Area (LPWA) access using Cisco Interface Module for LoRaWANTM. With it, you can rapidly deploy a wide variety of Internet of Things (IoT) solutions, including fleet management, mass transit, and remote asset monitoring. The 829 routers are designed to withstand hostile environments including shock, vibration, and humidity, as well as a wide temperature range (-40°C to +60°C and type-tested at +85°C for 16 hours). The IR829 brings together enterprise-grade wireline-like services such as Quality of Service (QoS), Cisco advanced VPN technologies (DMVPN and Flex VPN) and multiVRF for WAN, highly secure data, voice, and video communications and Cisco IOx, an open, extensible environment for hosting applications at the network edge.
Product overview
The IR829 supports the latest Third-Generation Partnership Project (3GPP), Release 9, Category 3 and Category 4 LTE standards. The routers provide persistent, reliable LTE connectivity transparent hand-offs between LTE and 3G networks.
Product Type: Modem/Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 4
Wireless Specifications
Broadband Transmission Technology: Cellular
Wireless LAN Standard: IEEE 802.11n
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 4G
Cellular Network Supported:
- LTE 2100
- LTE 1900
- LTE 1800
- LTE 1700
- LTE 850
- LTE 2600
- LTE 700
- LTE 800
- LTE 2500
- WCDMA 2100
- WCDMA 1900
- WCDMA 1800
- WCDMA 1700
- WCDMA 850
- WCDMA 900
Cellular Data Connectivity Technology:
- HSPA+
- LTE
- UMTS
Total Wireless Transmission Speed: 37.50 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports: 4
USB: Yes
Network & Communication
Ethernet Technology: Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
Physical Characteristics
Form Factor:
- Panel-mountable
- Door Mount
Height: 1.7″
Width: 11″
Depth: 7.7″
Weight (Approximate): 4.41 lb
Miscellaneous
Country of Origin: United States
Warranty
Limited Warranty: 5 Year
