Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: UCS-SP-5108-AC2
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Series: UCS 5100
Product Model: UCS 5108
Product Name: UCS 5100 Series UCS 5108 Blade Server Case
Marketing Information:
The Cisco UCS 5100 Series Blade Server Chassis is a crucial building block of the Cisco Unified Computing System, delivering a scalable and flexible blade server chassis for today’s and tomorrow’s data center while helping reduce TCO.

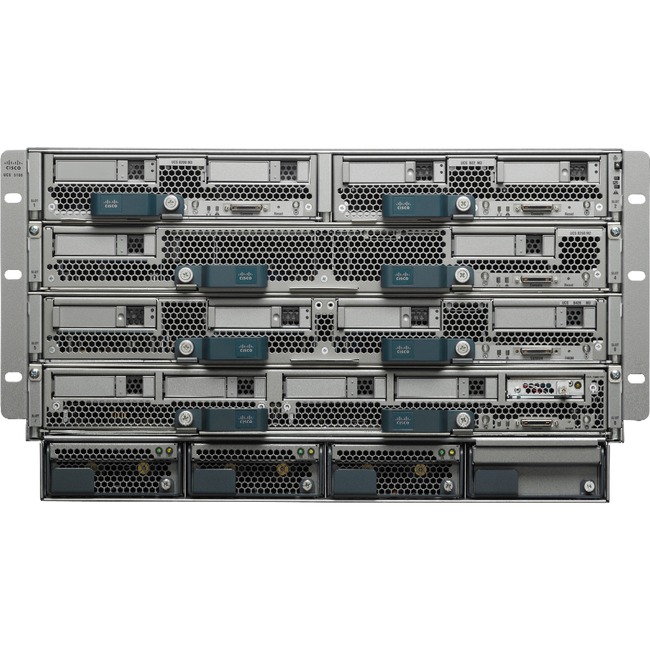

The Cisco UCS 5108 Blade Server Chassis (Figure 2) is six rack units (6RU) high and can mount in an industry-standard 19-inch rack. A chassis can house up to eight half-width Cisco UCS B-Series Blade Servers and can accommodate both half-width and full-width blade form factors.
Four hot-swappable power supplies are accessible from the front of the chassis, and single-phase AC, -48V DC, and 200 to 380V DC power supplies and chassis are available. These power supplies are up to 94 percent efficient and meet the requirements for the 80 Plus Platinum rating. The power subsystem can be configured to support nonredundant, N+1 redundant, and grid-redundant configurations. The rear of the chassis contains eight hot-swappable fans, four power connectors (one per power supply), and two I/O bays that can support either Cisco UCS 2000 Series Fabric Extenders or the Cisco UCS 6324 Fabric Interconnect. A passive midplane provides up to 80 Gbps of I/O bandwidth per server slot and up to 160 Gbps of I/O bandwidth for two slots. The chassis is capable of supporting future 40 Gigabit Ethernet standards.
Product Type: Blade Server Case
I/O Expansions
Number of Total Expansion Slots: 2
Power Description
Power Supply Installed: No
Number of Power Supplies Supported: 4
Number of Power Supplies Installed: 0
Physical Characteristics
Product Color: Gray
Compatible Rack Unit: 6U
Form Factor: Rack-mountable
Height: 10.5″
Width: 17.5″
Depth: 32″
Warranty
Limited Warranty: Lifetime
