Manufacturer: Dell Technologies
Manufacturer Part Number: PowerEdge R720xd
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Line: PowerEdge
Product Model: R720xd

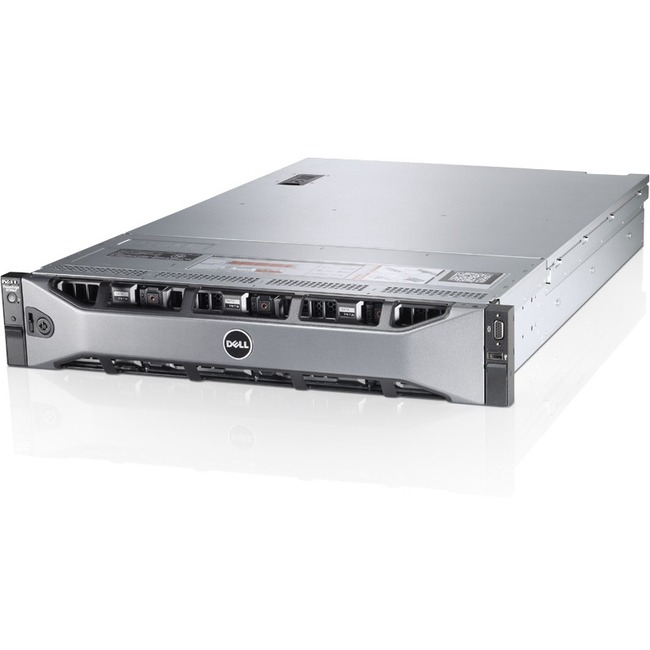

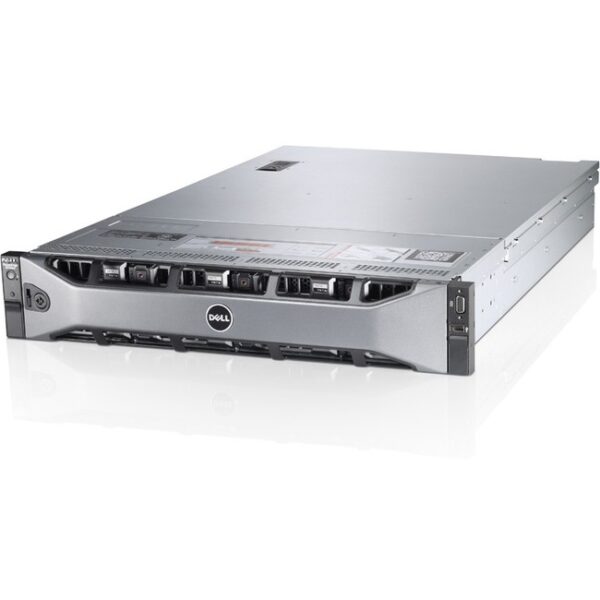

Product Name: PowerEdge R720xd Server
Marketing Information:
With ultra-dense internal storage, the 2-socket, 2U Dell™ PowerEdge™ R720xd rack server is performance balanced for data intensive operations.
Designed for workloads that are hungry for storage and I/O performance, like medical imaging and email servers, the Dell PowerEdge R720xd rack server is a powerful combination of highly expandable memory, impressive I/O capabilities and extraordinary storage capacity. Powered by Intel® Xeon® E5-2600 processors, and reinforced with reliability, availability and serviceability (RAS) features like hot-plug fans, disks and power supply units (PSUs), the R720xd delivers outstanding performance and rock-solid reliability.
Exploit extensive local storage
Quickly access and process vast amounts of data with the PowerEdge R720xd, which offers twenty-four 2.5-inch disks or twelve 3.5-inch disks (plus two 2.5-inch disks in the back of the server), up to 768GB of memory (24 DIMMs) and integrated PCI Express® 3.0-capable expansion slots. The R720xd is a great solution for any midsize or large business that requires scalability in both memory density and storage capacity.
Tailor your network fabric
The R720xd’s network features allow you to tailor your network throughput to match your application needs, enabling added I/O performance. Dell Select Network Adapters, our flexible NIC technology, let you choose the right network fabric without using up a valuable PCI slot. You can pick speed, technology, vendor and other options, like switch independent partitioning that lets you share and manage bandwidth on 10GbE connections.
The PowerEdge server line
The PowerEdge family is engineered with the right combination of features and performance scalability to handle tough workloads for both large and small data center environments.
The Dell OpenManage™ systems management portfolio includes the Integrated Dell Remote Access Controller (iDRAC) with Lifecycle Controller. This embedded feature helps IT Administrators manage Dell servers in physical, virtual, local and remote environments, operating in-band or out-of-band, with or without a systems management software agent. OpenManage integrates and connects to leading third-party systems management solutions you may already own, so you can maintain your single point of control and capitalize on your existing investment. OpenManage simplifies the lifecycle of deploying, updating, monitoring, and maintaining your Dell PowerEdge servers.
Product Type: Server
Processor
Number of Processors Supported: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Chipset
Chipset Manufacturer: Intel
Chipset Model: C600
Memory
Maximum Memory Supported: 768 GB
Memory Technology: DDR3 SDRAM
Number of Total Memory Slots: 24
Controllers
Controller Type:
- Serial ATA/600
- 6Gb/s SAS
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Slots: 6
PCI Express x8 (Gen 3.x) Slots: 4
PCI Express x16 (Gen 3.x) Slots: 2
PCI Express Details: Two x16 full-length, full-height ? One x8 full-length, full-height ? Three x8 half-length, half-height
Network & Communication
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Interfaces/Ports
Network (RJ-45): Yes
Operating System
Operating System Supported:
- Windows Server 2008
- Windows Server 2008 x64
- SuSE Linux Enterprise Server
- Red Hat Enterprise Linux
- Citrix XenServer
- Windows Server
- Windows Small Business Server 2011
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Number of Power Supplies Supported: 2
Maximum Power Supply Wattage: 1100 W
Redundant Power Supply: Yes
Hot Swappable Power Supply: Yes
Physical Characteristics
Form Factor: Rack
Rack Height: 2U
Height: 3.4″
Width: 19″
Depth: 28.5″
Weight (Approximate): 71.65 lb
