Manufacturer: Dell Technologies
Manufacturer Part Number: SCV3020
Manufacturer Website Address: http://www.delltechnologies.com
Brand Name: Dell EMC
Product Series: SC
Product Model: SCv3020

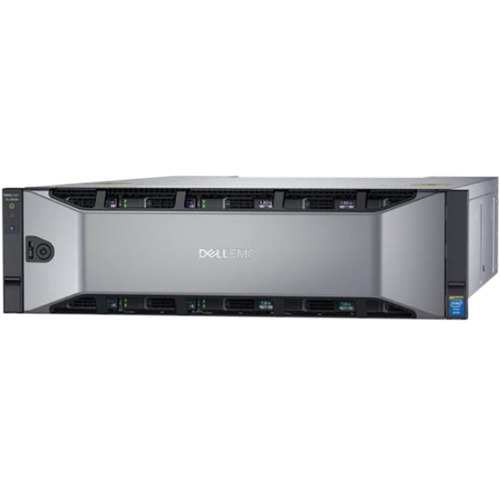

Product Name: SCv3020 SAN Storage System
Marketing Information:
-
DELL EMC SC SERIES HYBRID STORAGE ARRAY
Cost-effective, predictable performance for mixed-application environment
Accelerate your workloads, automate your savings
SC Series Hybrid arrays take the guesswork out of storage economics with a modern architecture that optimizes your data center for cost-savings while delivering transformational SSD, HDD or tiered performance.
SC is an integrated portfolio of array models that work together to give companies of all sizes the technology advantage they need to compete in today’s volatile markets. From affordable entry solutions offering the lowest effective
- /GB, to large arrays providing over 2 million maximum IOPS and 6PB raw capacity, SC has the power to take you from where you are now to where you want to go.
Highlights include:
- Advanced auto-tiering – Achieve IOPS goals with the least expensive mix of storage media, even as performance needs evolve. Data Progression and RAID tiering eliminate manual provisioning and help your storage adapt to the unique requirements of each workload.
- Deduplication & Compression – Dramatically reduces the raw capacity required to store your data
- Multi-array Federation – Gives you freedom to make fast changes without interrupting applications and users
- World-class deployment & support options – From intuitive customer-installable solutions, to expert onsite and remote professional services, SC Series has what it takes to ensure your installation goes right the first time.
Respond to changing requirements
Self-optimizing SC arrays auto-tune your environment for day-to-day and long-term success, helping you stay agile in an unpredictable future. Based on real-time usage monitoring and application performance demands, patented SC Data Progression continually adjusts multiple drive tiers and RAID levels for maximum efficiency.
By default, all new data is written to the fastest Tier 1 drives at RAID 10 speeds, then converted to economical RAID 5/6 (on the same drives) for subsequent reads. As data ages, it’s moved to less expensive storage until it becomes more active again. Data is precisely where it’s needed, when it’s needed – the perfect combination of high IOPs and cost savings.
0-100% Flash architecture
Target specific price/ performance ratios with any mix of SSDs and HDDs – then modify the mix as your needs change. Add more flash to boost performance, or “cheap and deep” spinning disk as cold data volumes grow. Hot data will always be written to your fastest drives at the fastest RAID levels.
Intelligent Data Reduction
SC Series Deduplication and Compression are applied dynamically at a sub-LUN level to reduce capacity needs while cranking up performance throughout the data lifecycle. Never stuck in a single mode for any given data set, SC data reduction works with Data Progression to consistently drive down expenditures on SSDs, HDDs or both.
Easy Multi-Array Systems
When you’re ready, the innovative SCOS (SC Operating System) software makes multi-array expansion and management a breeze, automating time-consuming, error-prone tasks such as server/LUN mapping. Rebalance or consolidate workloads with minimal effort – and zero interruption to services.
Product Type: SAN Storage System
Storage
Number of Hard Drives Supported: 30
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 30
Number of Solid State Drive Installed: 0
Total Solid State Drive Capacity Supported: 1024 TB
Clustering Supported: Yes
Processor & Chipset
Number of Processors Installed: 2
Processor Manufacturer: Intel
Processor Type: Xeon
Processor Model: E5-2603 v4
Processor Core: Hexa-core (6 Core)
Processor Speed: 1.70 GHz
Memory
Standard Memory: 32 GB
Network & Communication
Ethernet Technology: Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays: 30
Number of 2.5″ Bays: 30
Expansion Slot Type: SFP+
Controllers
Number of Controllers: 2
Controller Type: 12Gb/s SAS
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, RAID 10-DM
Interfaces/Ports
Number of SAS Ports (External): 4
Network (RJ-45): Yes
Fibre Channel: Yes
Software
Operating System: Storage Center 7.2
Management & Protocols
Protocols:
- FCP
- iSCSI
Power Description
Number of Power Supplies Installed: 2
Plug/Connector Type: NEMA 5-15P
Maximum Power Supply Wattage: 1485 W
Physical Characteristics
Height: 5.3″
Width: 17.5″
Depth: 30.9″
Form Factor: Rack-mountable
Rack Height: 3U
Weight (Approximate): 33.40 lb
