Juniper EX2300 Ethernet Switch

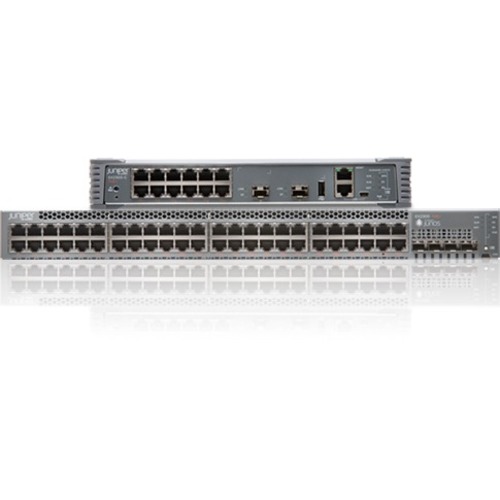

EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.

The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.

Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.

Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported:

• Optical Fiber
• Twisted Pair

Ethernet Technology:

• 10 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 10/100/1000Base-TX
• 10GBase-X

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:

• Rack-mountable
• Wall Mountable
• Desktop

Height: 1.8″
Width: 17.4″
Depth: 10.2″
Miscellaneous
Environmentally Friendly: Yes
