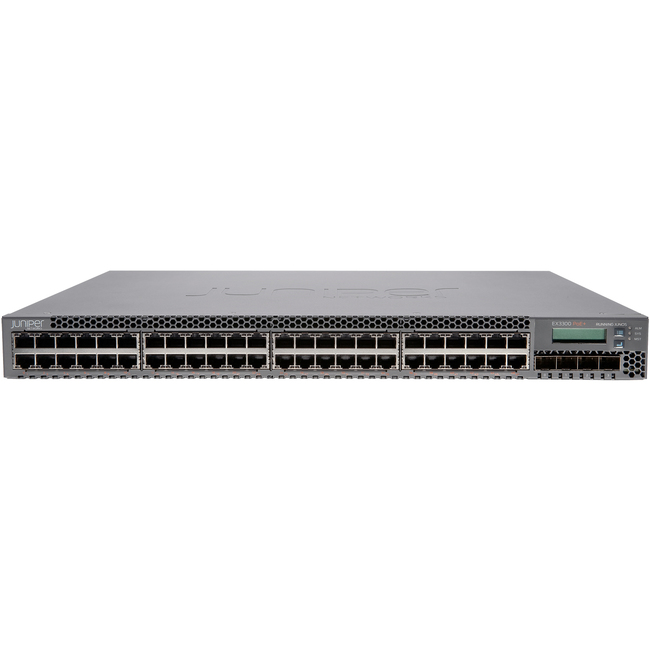

Juniper EX3300-48P Layer 3 Switch

The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to six interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.

Multiple EX3300 options are available, offering 24 and 48 10/100/1000-T access ports and four dual mode (GbE/10GbE) SFP/SFP+ uplink ports, with or without support for standards-based IEEE 802.3af Class 3 Power Over Ethernet (PoE). PoE support enables the EX3300 to support networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points. The EX3300 also supports the 802.3at PoE+ standard, offering additional power for devices such as multiple radio IEEE 802.11n wireless access points.

Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Port/Expansion Slot Details:

• 48 x Gigabit Ethernet Network
• 4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance
Ethernet Technology:

• Gigabit Ethernet
• Fast Ethernet

Network Technology:

• 10/100/1000Base-T
• 10/100Base-TX

I/O Expansions
Number of Total Expansion Slots: 4
Expansion Slot Type: SFP+
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 12″
Weight (Approximate): 12.80 lb
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Warranty
Limited Warranty: Lifetime
