Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: MS225-48FP-HW
Manufacturer Website Address: http://www.cisco.com
Brand Name: Meraki
Product Series: MS225
Product Model: MS225-48FP

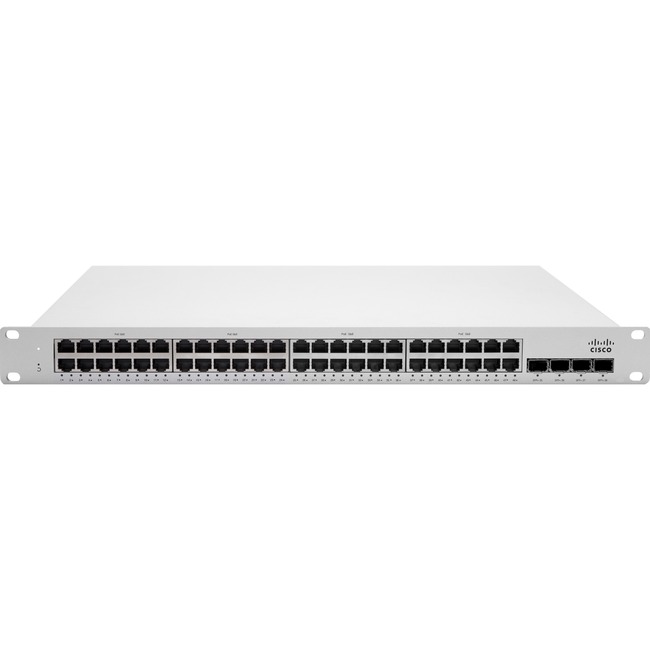

Product Name: MS225-48FP Ethernet Switch
Marketing Information:
The Cisco Meraki MS225 series switches provide layer 2 access switching and are ideal for deploying to branch locations. With stacking capabilities and 10G SFP+ uplinks on every model, performance is guaranteed. This family also supports an optional, rack-mountable remote PSU (Cisco RPS-2300) for power redundancy requirements.
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:
- 48 x Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Uplink
- 2 x Stack
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 6
Expansion Slot Type: SFP+
Shared SFP Slot: No
Number of SFP+ Slots: 4
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor:
- Rack-mountable
- Desktop
Height: 1.7″
Width: 19.1″
Depth: 13.4″
Weight (Approximate): 9.63 lb
Miscellaneous
Package Contents:
- MS225-48FP Ethernet Switch
- 1 x Power Cord
- Mounting Screw Kit
- Rack Mount Hardware
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: Lifetime
